Electroplating and Chemical Platingof Aluminum

RTLCHEM

Aluminum electroplating and chemical plating are two common surface treatment techniques aimed at improving the corrosion resistance, conductivity, wear resistance, ordecorative appearance of aluminum and its alloys. Due to aluminum’s high chemical reactivity(prone to forming surface oxide films) and negative electrode potential, its surfacetreatment processes require special attention to pretreatment steps.

1. Electroplating of Aluminum

01 Principles and Challenges

Principles: Deposition of a metallic coating (e.g., nickel, copper, chromium, zinc) onto the aluminumsubstrate through electrolytic reactions.
Challenges: The natural aluminum oxide layer (Al₂O₃) on the surface hinders adhesion of the metal coating. Special pretreatments are required to remove the oxide layer and form a transition layer.

02 Typical Process Flow

1. Pretreatment:

  1. Degreasing: Remove surface oils (alkaline or acidic cleaners).
  2. Alkaline Etching: Use NaOH solution (50-100 g/L, 50-70°C) to remove oxide layersandsurface impurities.
  3. Acid Rinsing: Neutralize residual alkali with nitric or sulfuric acid to activate the surface.

2. Zinc Immersion Treatment (Critical Step):

  1. Deposit a thin zinc layer on the aluminum surface (e.g., using alkaline zinc immersionsolution: NaOH, ZnO, NaNO₃) to form a metallic transition layer, enhancing adhesionof subsequent coatings.
  2. It may require multiple zinc immersion (2-3 times) to improve uniformity.

3. Pre-Plating Layer: Electroplate an intermediate metal layer (e.g., copper oxide, neutral nickel) to prevent direct contact between aluminum and subsequent coatings, avoiding galvanic corrosion.

4. Target Electroplating: Nickel, chromium, silver, gold, etc. are plated according to requirements (e.g., nickel platingisused for corrosion resistance, chrome plating for wear resistance or decoration).

5. Post-Treatment: Passivation, sealing, or drying.

03 Advantages and Disadvantages

Advantages:

  1. Controllable coating thickness with diverse metal options.
  2. Strong adhesion (when the impregnating galvanizing process is qualified).

Disadvantages:

  1. Complex process flow and high cost
  2. Need to treat wastewater containing cyanide or heavy metals (high environmental pressure)

2. Chemical Plating of Aluminum

01 Principles and Applications

Principles: Deposit a metal layer (e.g.,electroless nickel plating and electroless copper plating)on aluminum by autocatalytic redox reactions without external power.

Applications: Suitable for complex-shaped workpieces, non-conductive substrates, or scenarios requiring uniform coatings.

02 Process Flow (Electroless Nickel Plating Example)

1. Pretreatment:

  1. Degreasing, alkaline etching, and acid rinsing (similar to electroplating).
  2. Zinc Immersion or Direct Activation: Some processes skip zinc immersion anduseacidic activation solutions (e.g., fluoride solution) to remove oxide film.

2. Electroless nickel plating:

  1. Bath composition: Nickel salts (e.g., nickel sulfate), reducing agents (sodiumhypophosphite), complexing agents (citric acid, lactic acid), and pH adjusters (ammoniasolution).
  2. Reaction temperature : 85-95℃, pH 4-6 (acidic system) or 8-10 (alkaline system).
  3. Deposition rate: Deposition rate: 10-25μm/h, the phosphorus content of the platingaffects hardness and corrosion resistance.

3. Post-Treatment:

  1. Heat treatment (200-400 ℃) improves the adhesion and hardness of the plating.
  2. Passivation or protective coating application.

03 Advantages and Disadvantages

Advantages:

  1. Uniform plating, suitable for complex workpieces;
  2. No need power supply, simple equipment;
  3. Plating exhibit self-lubrication and wear resistance (e.g., Ni-P alloys).

Disadvantages:

  1. Short bath lifespan requiring frequent maintenance.
  2. High costs for phosphorus-containing wastewater treatment.
  3. The coating thickness is generally thin (<50 μm).

3. Differences and Selection

Comparison Electroplating Chemical Plating
Plating Metals Multiple metals (Cu, Ni, Cr, etc.) Mainly Ni-P, Ni-B, Cu, etc.
Uniformity Affected by current distribution Highly uniform, ideal for complex shapes
Adhesion Depends on pretreatment (zinc immersion) Direct adhesion but requires strict activation
Environmental Impact Cyanide/heavy metal wastewater Phosphorus/heavy metal wastewater
Cost High equipment/energy costs High bath maintenance costs

Application Scenarios

1. Electroplating:

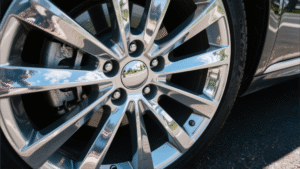

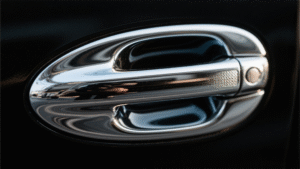

  • Automotive parts (chrome decoration), electronic connectors (gold/silver plating), high-corrosion-resistant components (nickel plating).

2. Chemical Plating:

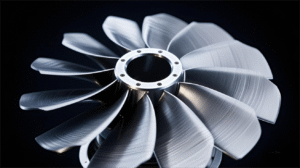

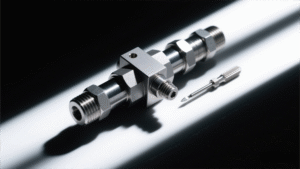

  • Precision parts (e.g., hydraulic valves), aerospace components (uniform corrosion-resistant layers), electromagnetic shielding (electroless copper).

4. Precautions

1. Pretreatment Quality:

Complete removal of aluminum oxide layers is critical for coatingadhesion.

2. Environmental Compliance:

Both processes involve heavy metal wastewater andrequiretreatment facilities.

3. Coating Design:

Select coating types based on service environment (e.g., electrolessnickel for marine applications).
